Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 176-200 >> 184

Views 176-200: 184

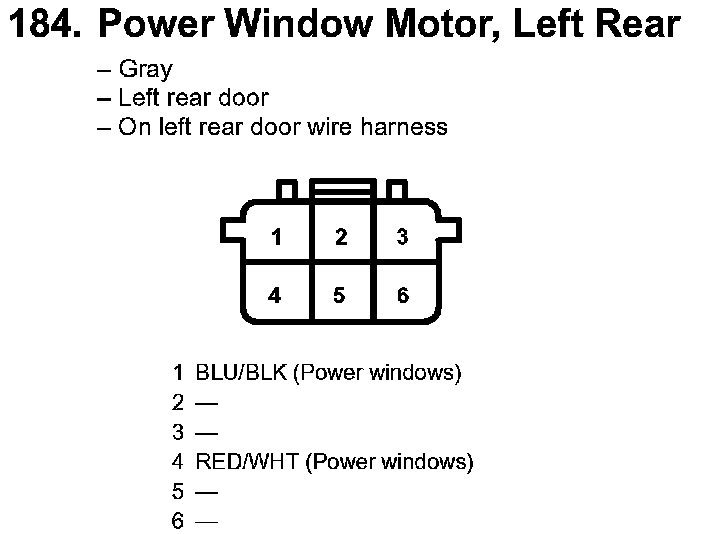

184. Power Window Motor, Left Rear:

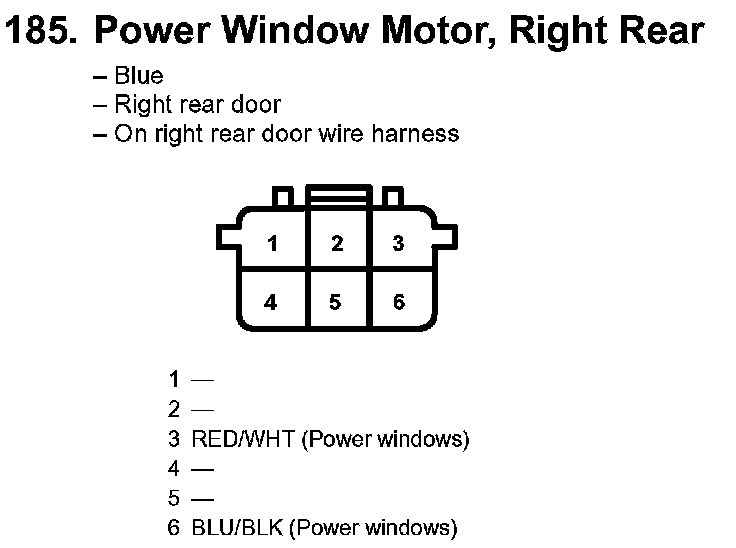

185. Power Window Motor, Right Rear:
