Views 151-175: 161

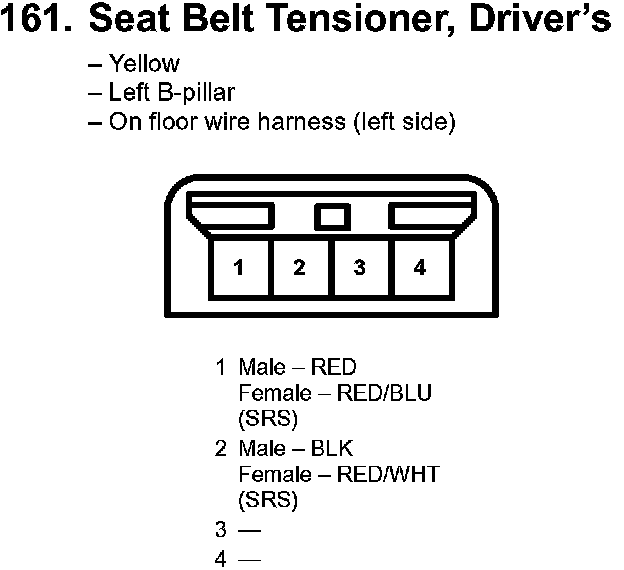

161. Seat Belt Tensioner, Driver's:



162. Seat Belt Tensioner, Front Passenger's:
