Operation CHARM: Car repair manuals for everyone.
Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 126-150 >> 150

Views 126-150: 150

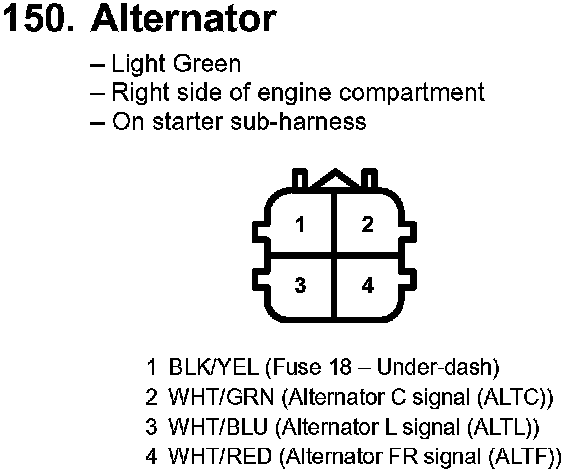

150. Alternator:
