Displaying & Reading Trouble Codes

How to Retrieve DTCs

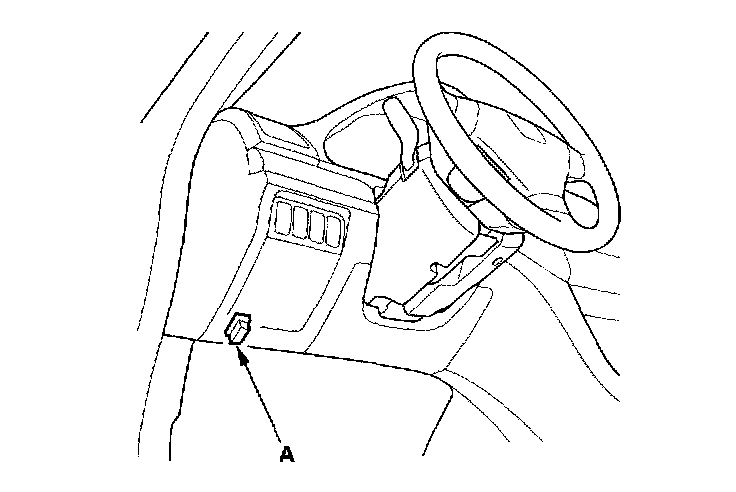

1. With the ignition switch OFF, connect the HDS to the 16P Data Link Connector (DLC) (A) under the left side of the dashboard.
2. Turn the ignition switch ON (II), and follow the prompts on the HDS to display the DTC(s) on the screen. After determining the DTC, refer to the DTC Troubleshooting Index. Symptom Troubleshooting Index

NOTE: See the HDS help menu for specific instructions.
