Rear Seat-Back Lock Cylinder Replacement

Rear Seat-back Lock Cylinder Replacement

NOTE: Take care not to scratch the interior trim.

1. Remove the rear shelf.
2. Disconnect the cylinder rods from both seat-back latches.

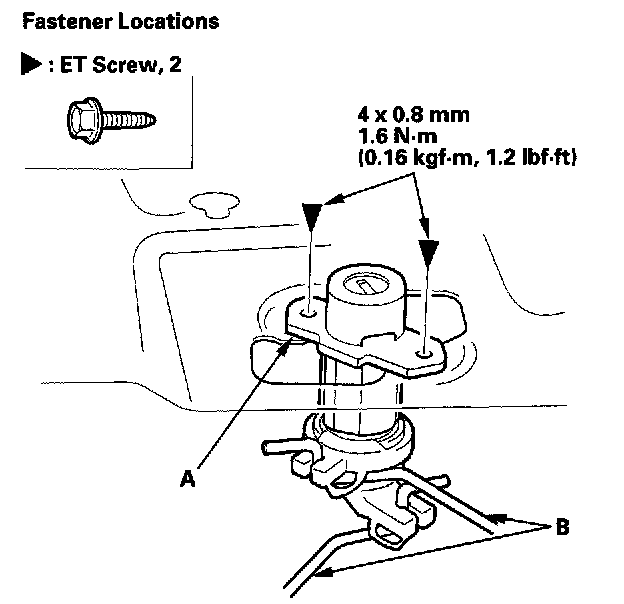

3. Remove the self-tapping ET screws, then remove the seat-back lock cylinder (A) and cylinder rods (B).
4. Install the lock cylinder in the reverse order of removal, and note these items:
- Make sure the cylinder rod is connected securely.
- Make sure the seat-back unlocks properly.
