Rear Seat Removal/Installation

Rear Seat Removal/Installation

NOTE: Take care not to scratch the body or tear the seat covers.

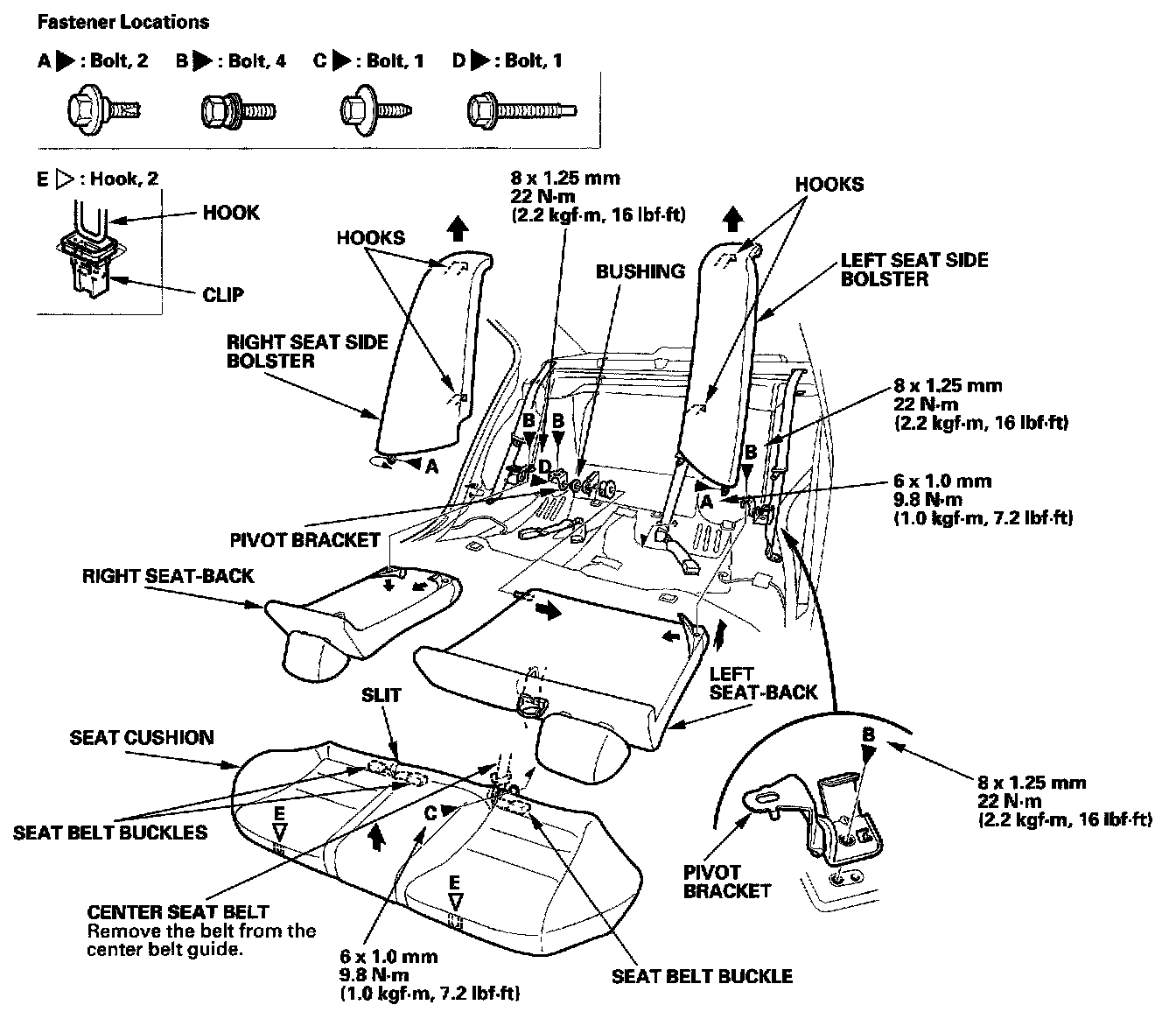

1. Remove the rear seat as shown.




2. Install the seat in the reverse order of removal, and note these items:
- Before attaching the rear seat-back and cushion, make sure there are no twists or kinks in the rear seat belts and center seat belt.
- When installing the seat cushion, slip the seat belt buckles through the slits in the seat cushion.
- Make sure the seat-back locks securely.
