Disassembly/Reassembly - Driver's 8-Way Power

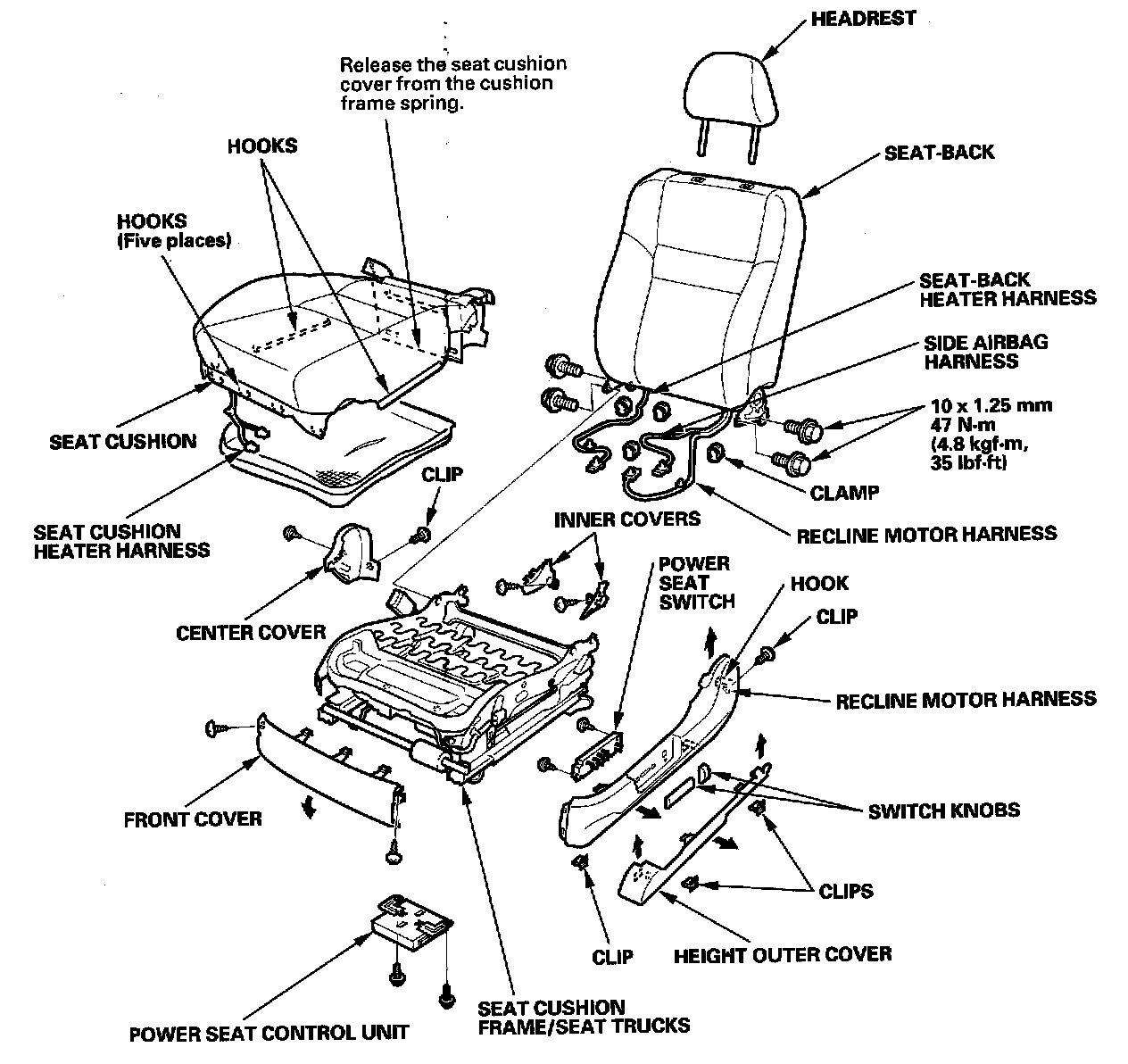

Front Seat Disassembly/Reassembly - Driver's 8-Way Power

Special Tools Required
KTC trim tool set SOJATP2014*
* Available through the American Honda Tool and Equipment Program; call 888-424-6857




SRS components are located in this area. Review the SRS component locations and the precautions and procedures before performing repairs or service.

NOTE:
- Take care not to tear the seams or damage the seat covers.
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Apply multipurpose grease to the moving portion of( the seat track.
- To prevent wrinkles in the seat cushion cover, stretch the material evenly over the pad before securing the clips, hooks, and hook strips.
