Sunroof / Moonroof Frame: Service and Repair

Frame and Drain Tube Replacement

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before performing repairs or service.

1. Remove these items:
- Headliner
- Moonroof glass

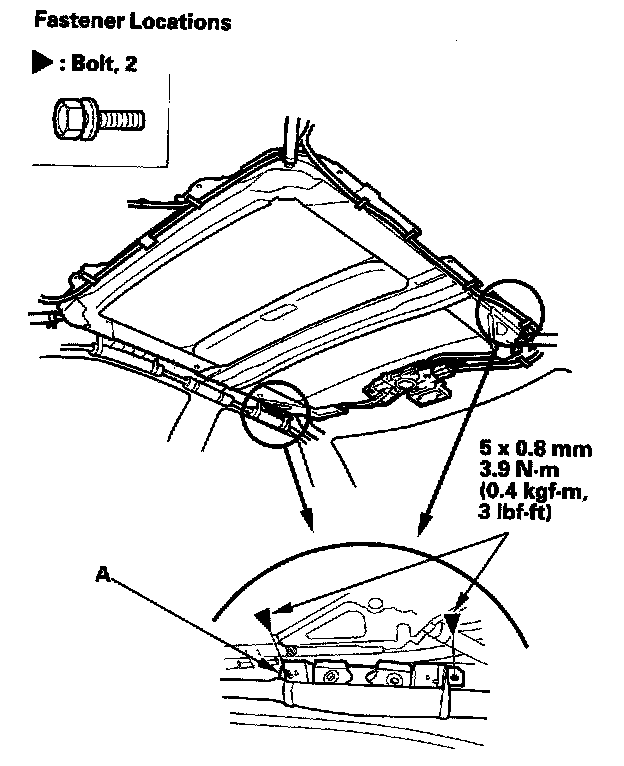

2. Remove the bolts securing both rear grab handle brackets (A), then release them from the body. Do not pull the bracket with the airbag excessively. Take care not to damage the airbag.

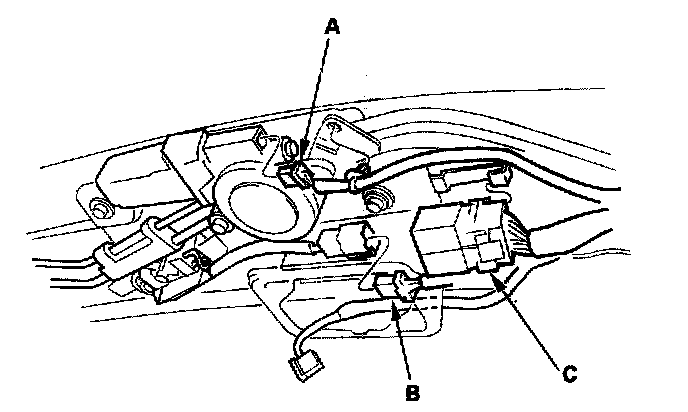

3. Put on gloves to protect your hands. Disconnect the motor connector (A), open/close-tilt/close switch connector (B), and remove the moonroof relays (C).

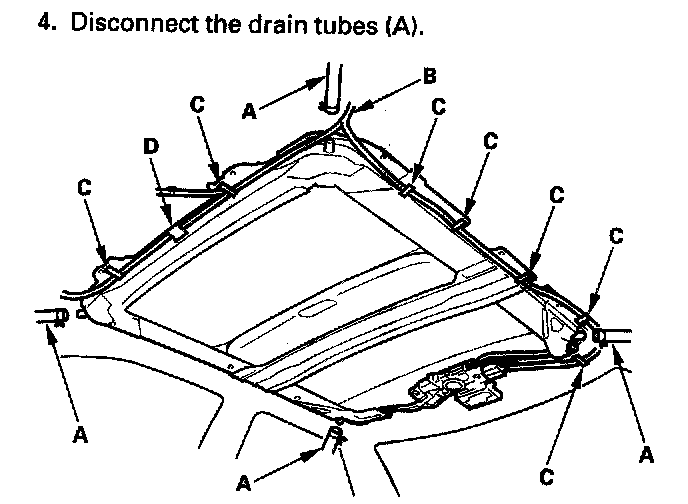

4. Disconnect the drain tubes (A).
5. Remove the interior harness (B) by detaching the harness clips (C) and removing the tape (D).

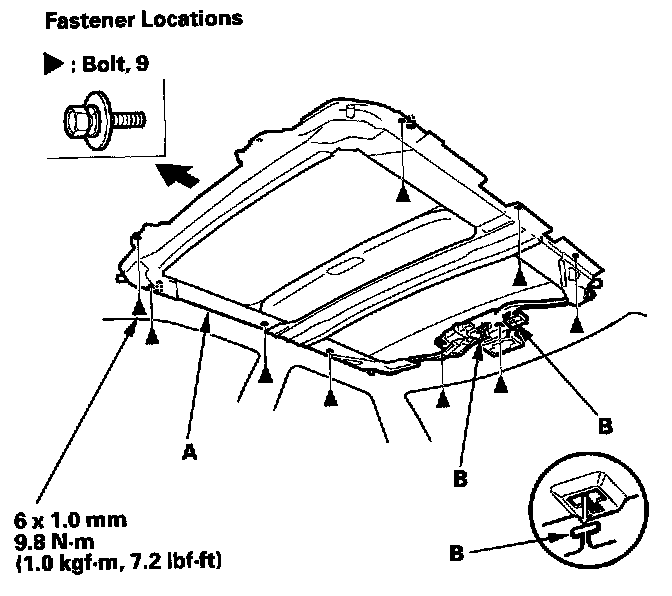

6. With an assistant holding the frame (A), remove the bolts, starting at the rear, and release the rear hooks (B) by moving the frame forward.

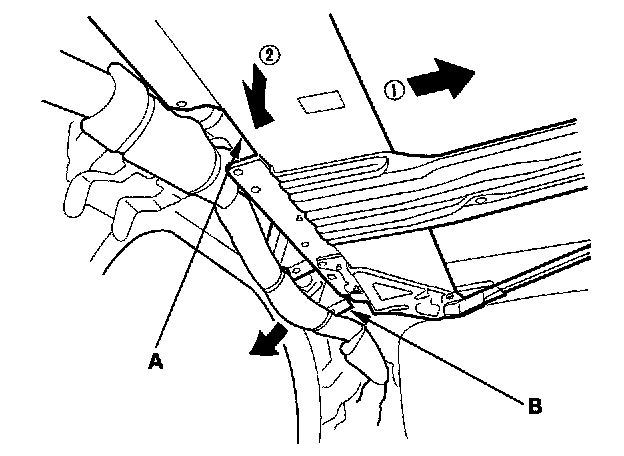

7. With the help of an assistant, move the frame (A) to the left or right, then lower the opposite side of rear grab handle down. If equipped, keep the rear grab handle bracket (B) away from the frame while lowering the frame. Take care not to hang the frame on the bracket.
8. With the help of an assistant, carefully remove the frame through the front door opening. Take care not to scratch the interior trim and body, or tear the seat covers.

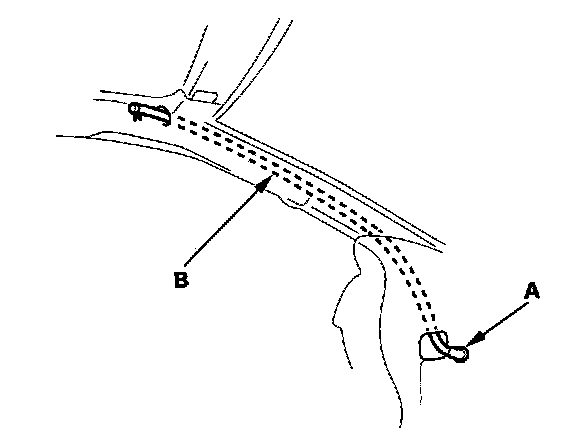

9. To remove a front drain valve (A) from the body, remove the kick panel, left or right. Tie a string to the top end of the drain tube, then pull the front drain tube (B) down out of the A-pillar leaving the string inside the pillar.




10. To remove a rear drain valve (A) from the body, remove these parts:
- Spare tire lid
- Trunk rear trim panel

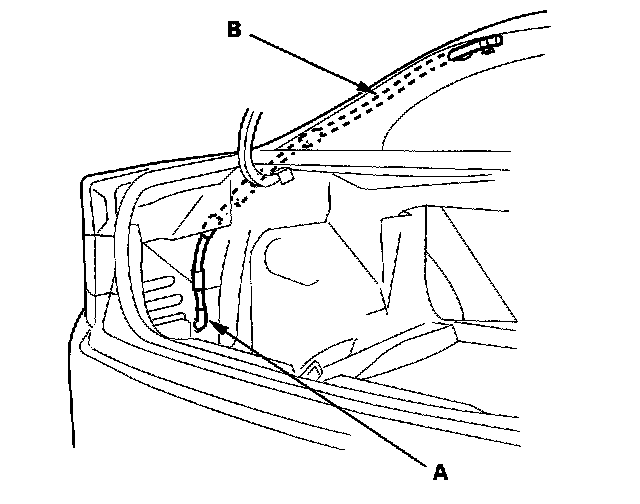

Tie a string to the top end of the rear drain tube (B), then pull back the trunk side trim panel and pull the drain tube down out of the pillar leaving the string inside the pillar.




11. Install the frame and drain tube in the reverse order of removal, and note these items:
- Before installing the frame, clear the drain tubes and drain valves using compressed air.
- When installing, tie the string to the top end of the new drain tube and pull it up into the roof.
- Check the frame seal
- Clean the surface of the frame.
- When installing the frame, first attach the rear hooks into the body holes.
- Make sure the connectors are plugged in properly.
- When connecting the drain tube, slide it over the frame nozzle at least 10mm (0.39 in.).

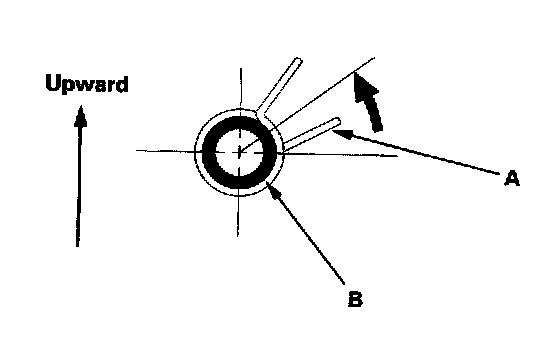

- Install the tube clip (A) on the drain tube (B) as shown.

12. Check for water leaks. Let the water run freely from a hose without a nozzle. Do not use a high-pressure spray.
