Sunroof / Moonroof: Adjustments

Glass Height Adjustment

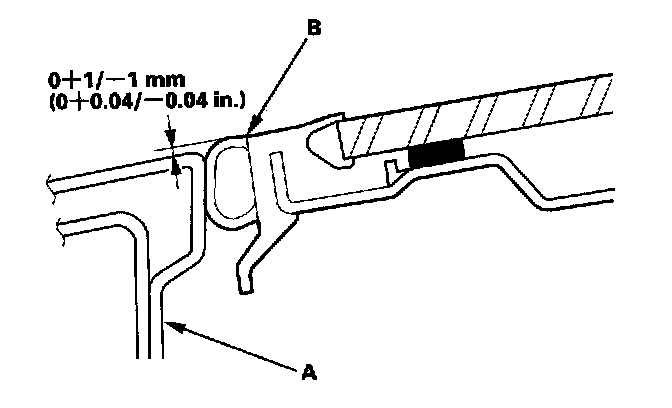

The roof panel (A) should be even with the glass weatherstrip (B), to within 0+1/-1 mm (0+0.04/-0.04 in.) all the way around. If not, make the following adjustment:

1. Remove the bracket cover.

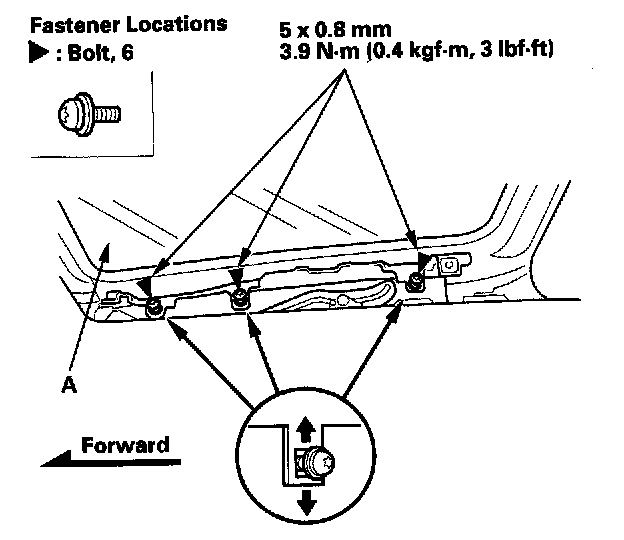

2. With a T25 Torx bit, loosen the bolts on each side, and adjust the glass (A).
3. If necessary, repeat on the opposite side.
