Glove Compartment: Service and Repair

Glove Box Removal/Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before performing repairs or service.

NOTE: Take care not to scratch the dashboard and related parts.

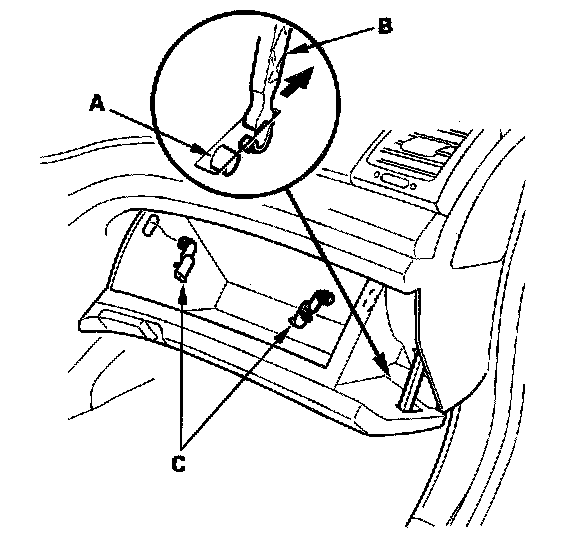

1. Detach the hook (A) of the glove box damper (B), and remove the glove box stop (C) on each side.

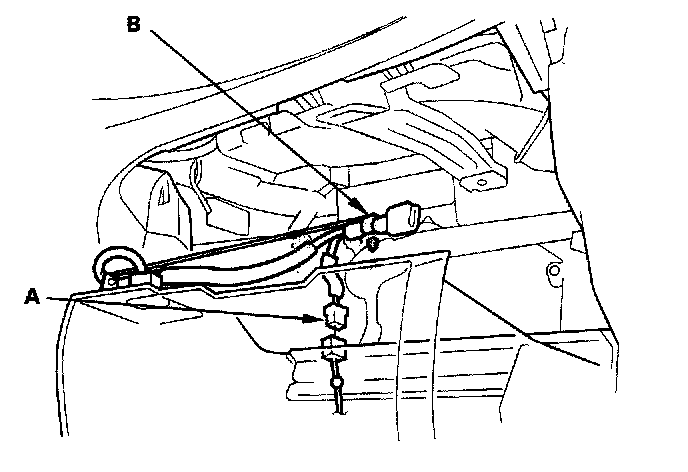

2. Disconnect the trunk lid opener main switch connector (A) and detach the harness clip (B).

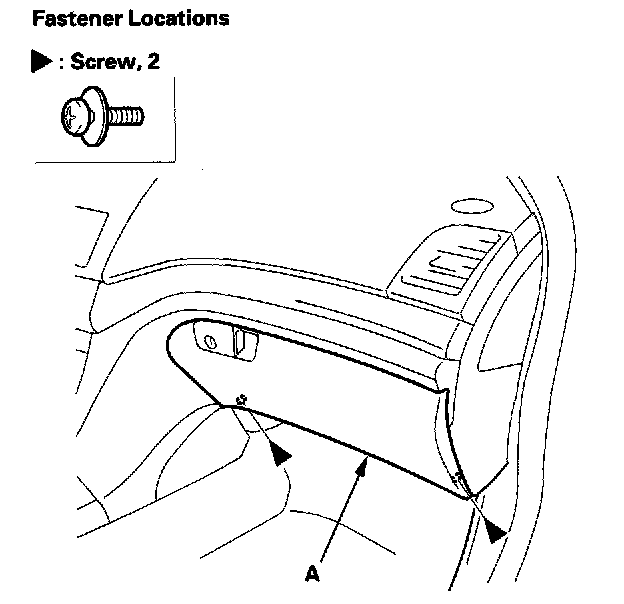

3. While holding the glove box (A), remove the screws, then remove the glove box.

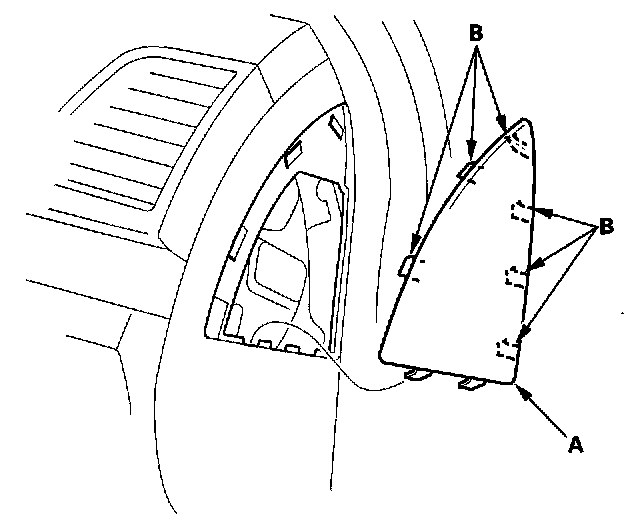

4. From the inside of the dash, gently push out on the front of the dashboard side cover (A) to release the hooks (B), to remove the cover.

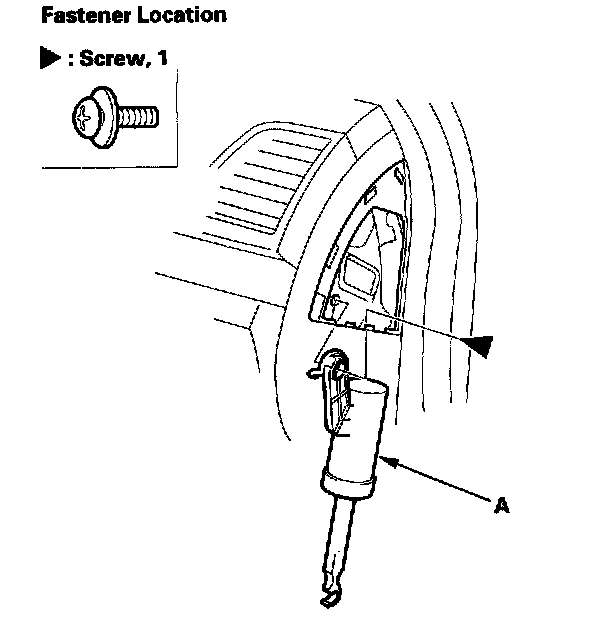

5. Remove the screw, then remove the glove box damper (A).
6. Install the glove box in the reverse order of removal.
