Driver's Inner Dashboard Trim

Driver's Inner Dashboard Trim Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014*
* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:
- Take care not to scratch the dashboard and related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

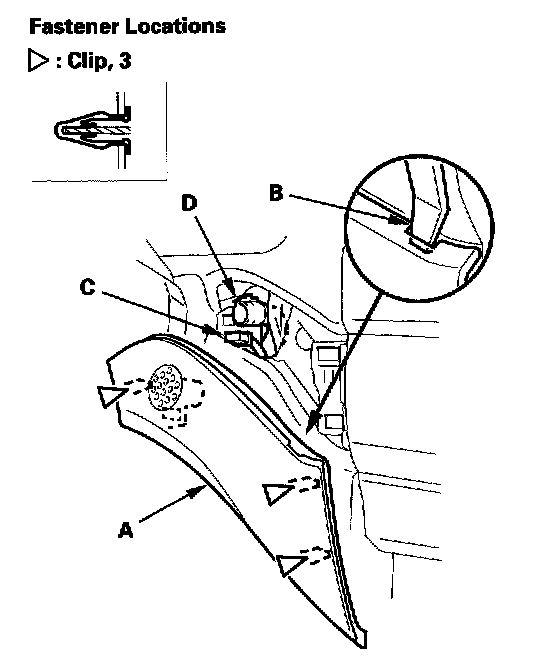

1. Remove the driver's inner dashboard trim (A).
1. Using a trim tool, pry up on the edge of the trim at the notch (B).
2. Detach the clips.
3. Disconnect the in-car temperature sensor connector (C) and air hose (D).

2. Install the trim in the reverse order of removal, and make sure the connector is plugged in properly, and the air hose is connected securely.
