Speaker: Service and Repair

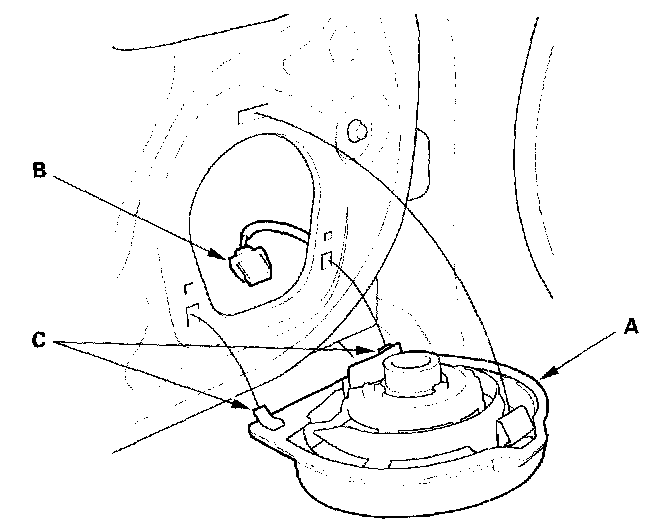

Speaker ReplacementFront Speaker
1. Remove the door panel.
NOTE: If you pull the speaker out too far from the door, you will damage the lower clips (C).
2. Pull the speaker (A) straight out, just enough to release the upper clips. Then lift the speaker straight up to release the lower clips (C).
3. Disconnect the 2P connector (B), and remove the speaker.

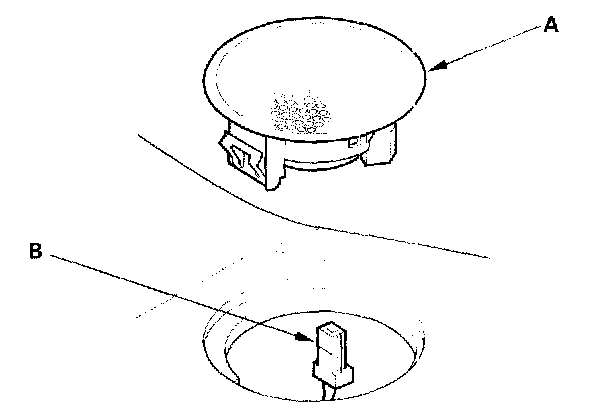

Tweeter
1. Remove the tweeter speaker grille and tweeter (A)
2. Disconnect the 2P connector (B) from the tweeter.

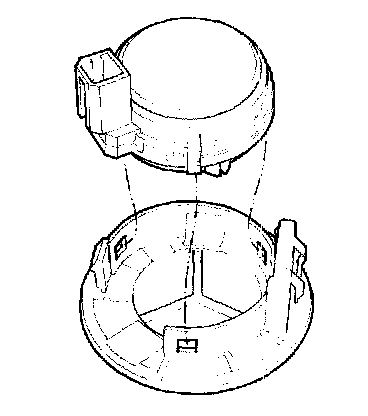

3. Remove the tweeter speaker grille from the tweeter.

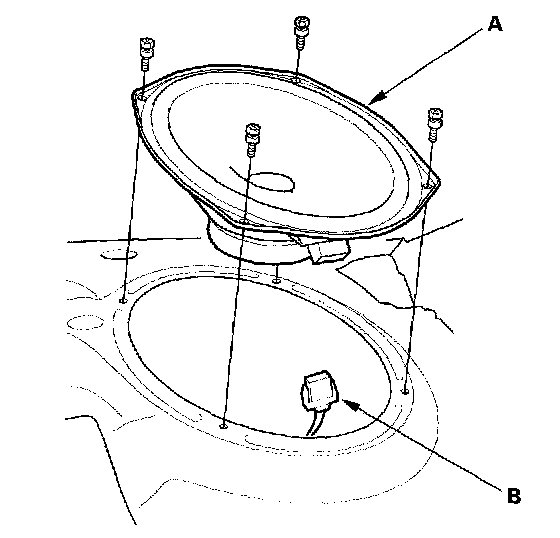

Rear Speaker:
1. Remove the rear speaker cover by prying straight up to release the clips.
2. Remove the four mounting bolts from the rear speaker (A).
3. Disconnect the 2P connector (B), and remove the speaker.
