XM Receiver Removal/Installation

XM Receiver Removal/Installation

'05 model

1. Open the trunk lid and remove the right trunk side trim pane.

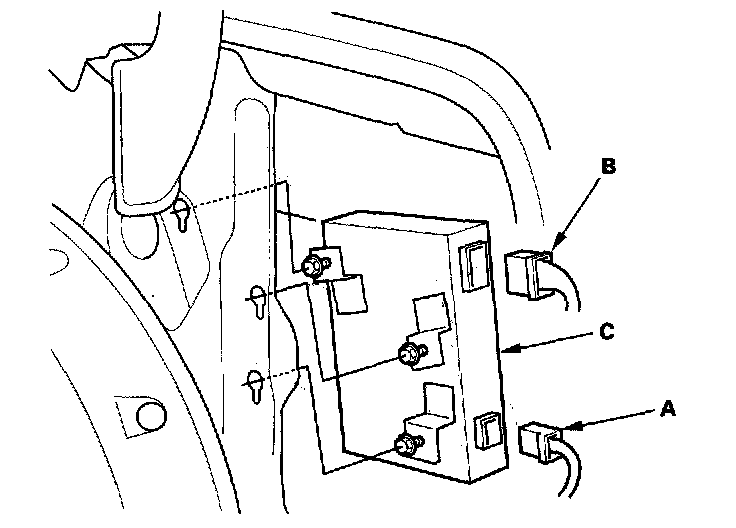

2. Disconnect the antenna 2P connector (A) and 14P connector (B) from the XM receiver (C).
3. Loosen the three nuts and remove the XM receiver.
4. Install in the reverse order of removal.
