Audio-HVAC Display Panel Disassembly/Reassembly

Audio-HVAC Display Panel Disassembly/Reassembly

1. Remove the audio-HVAC display panel.

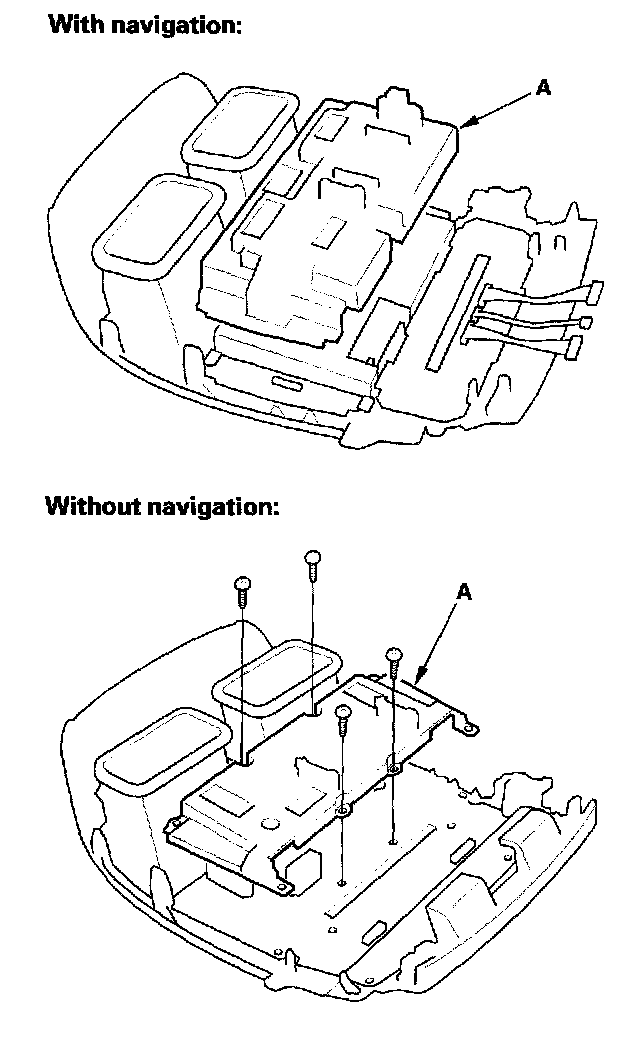

2. Remove the mounting screws and the cover (A).

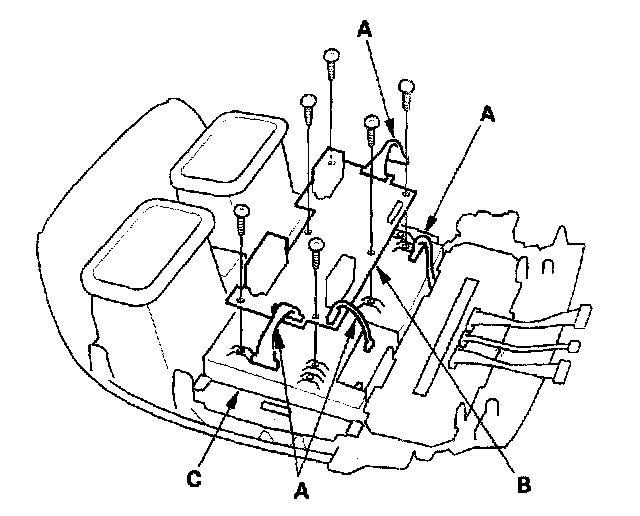

3. With navigation system: Remove the mounting screws and disconnect the connectors (A) from the circuit board (B), then remove the circuit board from the display unit (C).

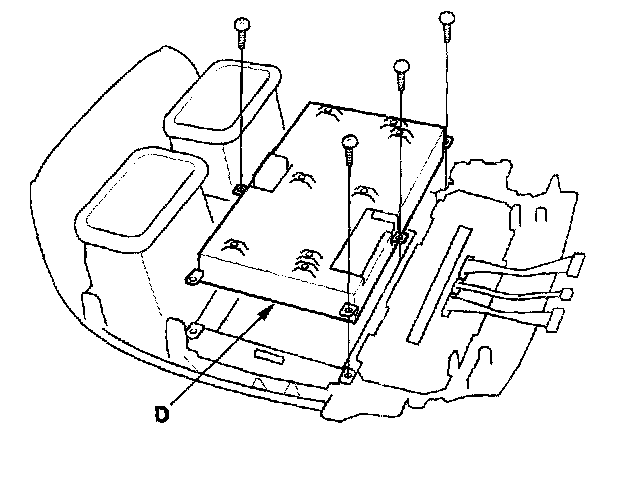

4. With navigation system: Remove the mounting screws and the display unit (D).

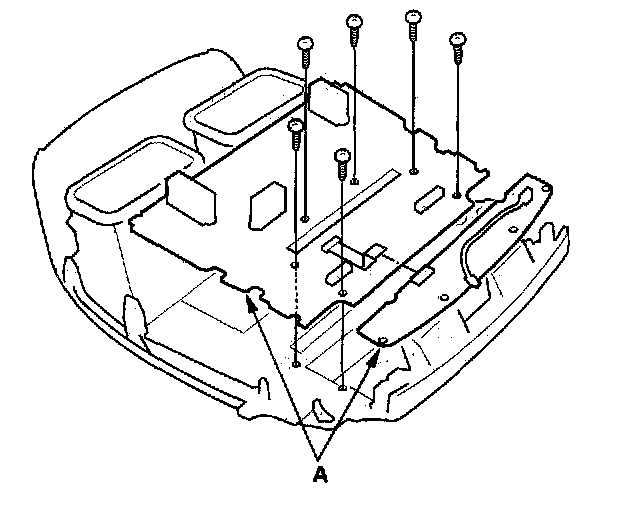

5. Without navigation system: Remove the mounting screws, then remove the printed circuit board (A).
6. Install the audio unit and printed circuit board in the reverse order of removal.
