Audio Unit Connector Replacement

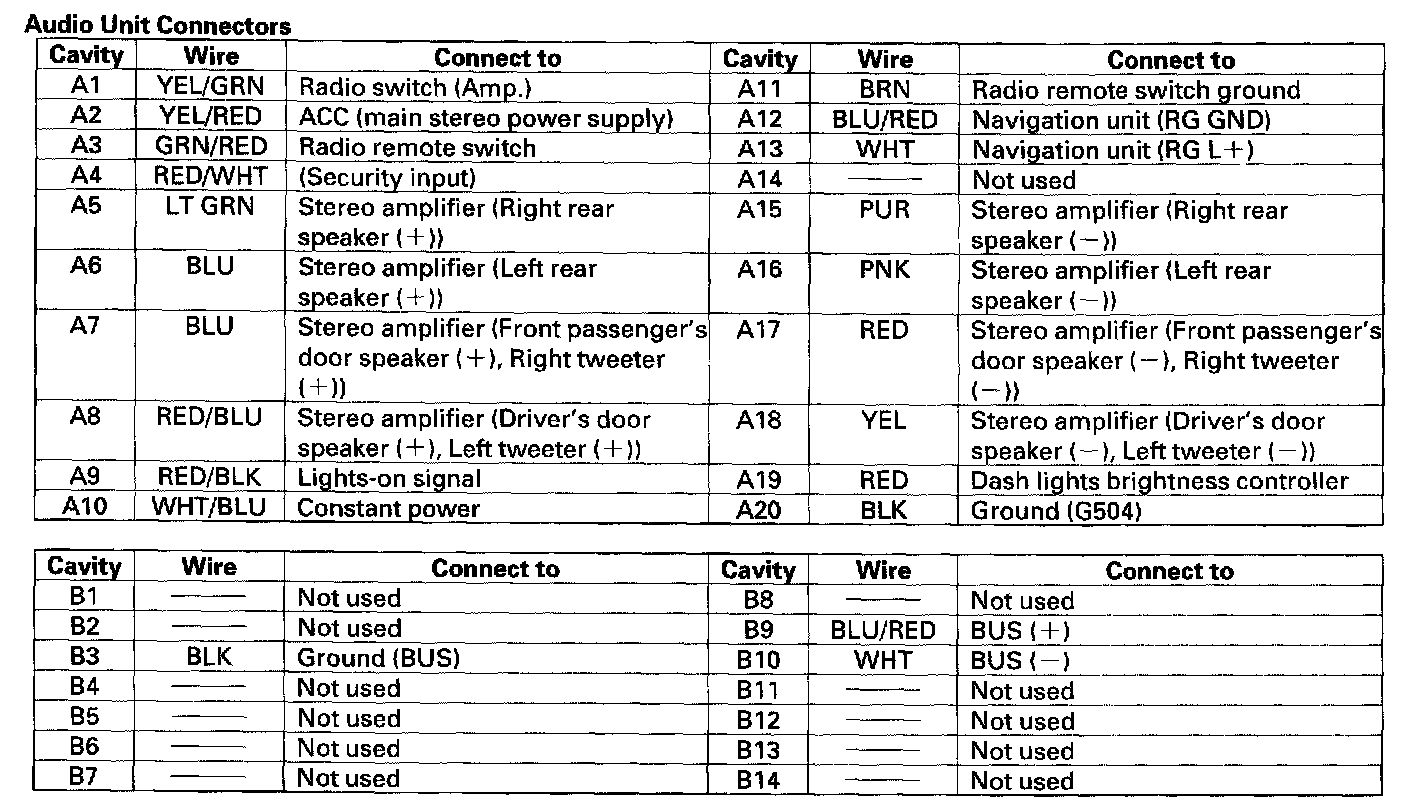

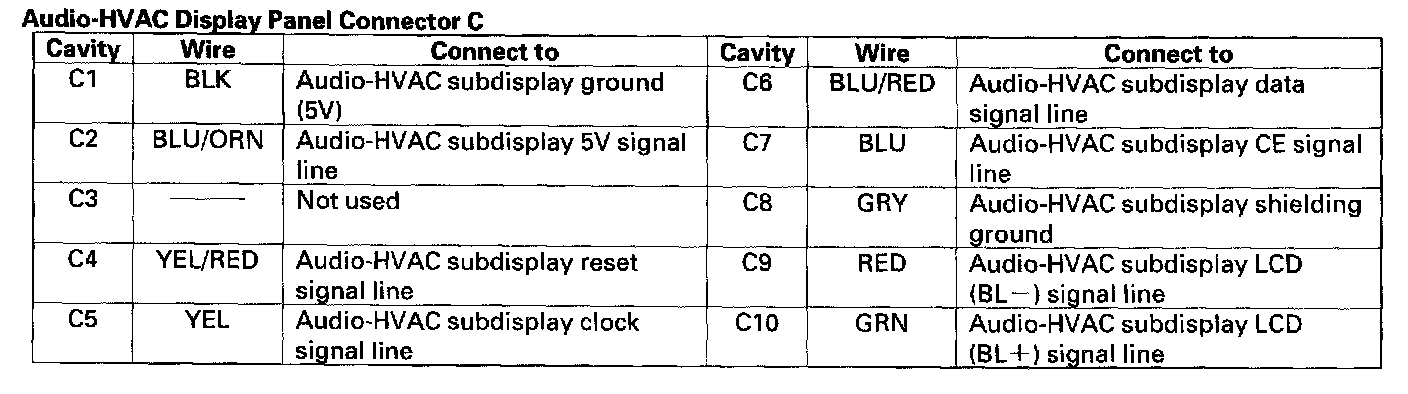

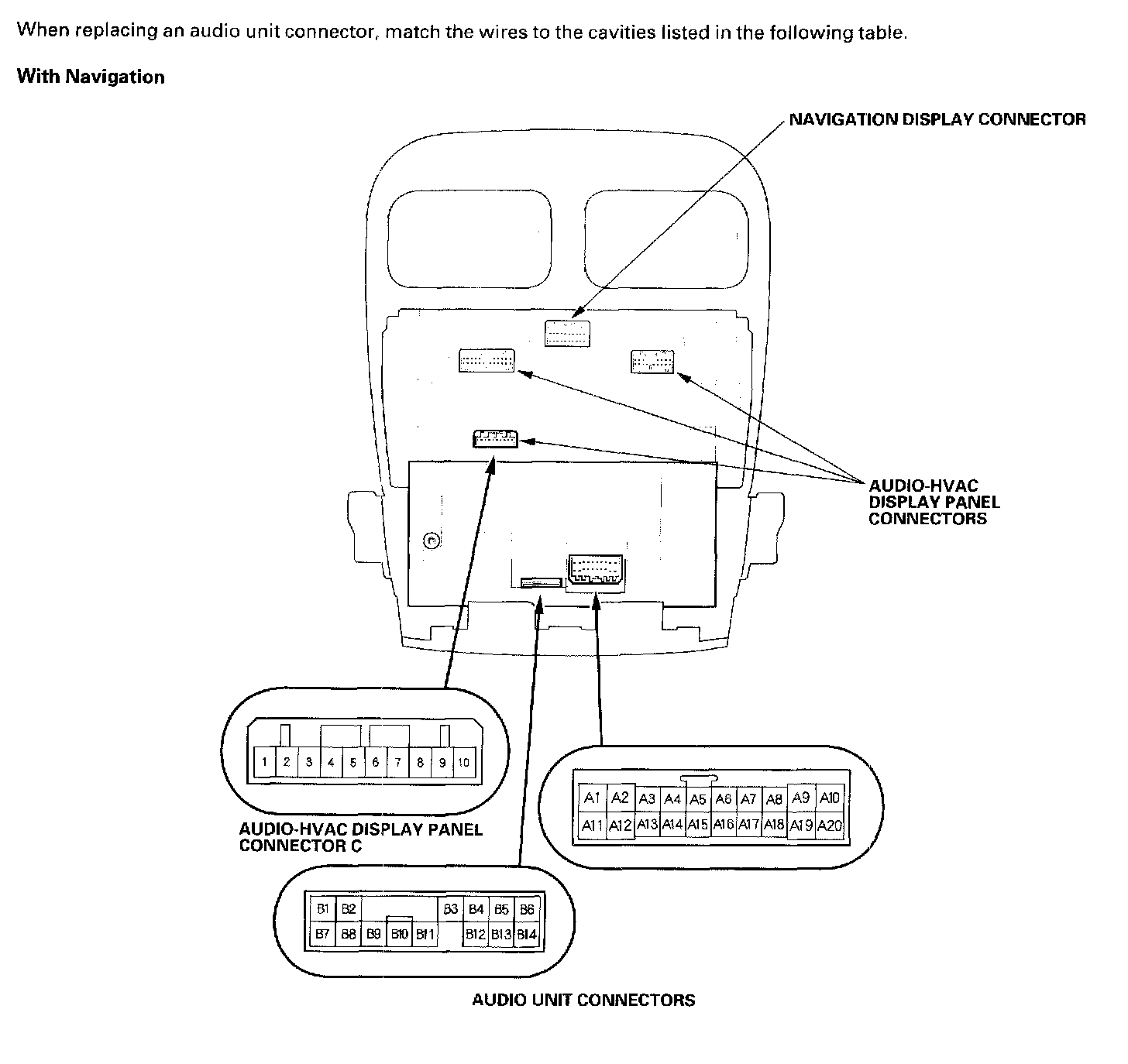

Audio Unit Connector Replacement - With Navigation Part 1:



Audio Unit Connector Replacement - With Navigation Part 2:



Audio Unit Connector Replacement - With Navigation Part 3:

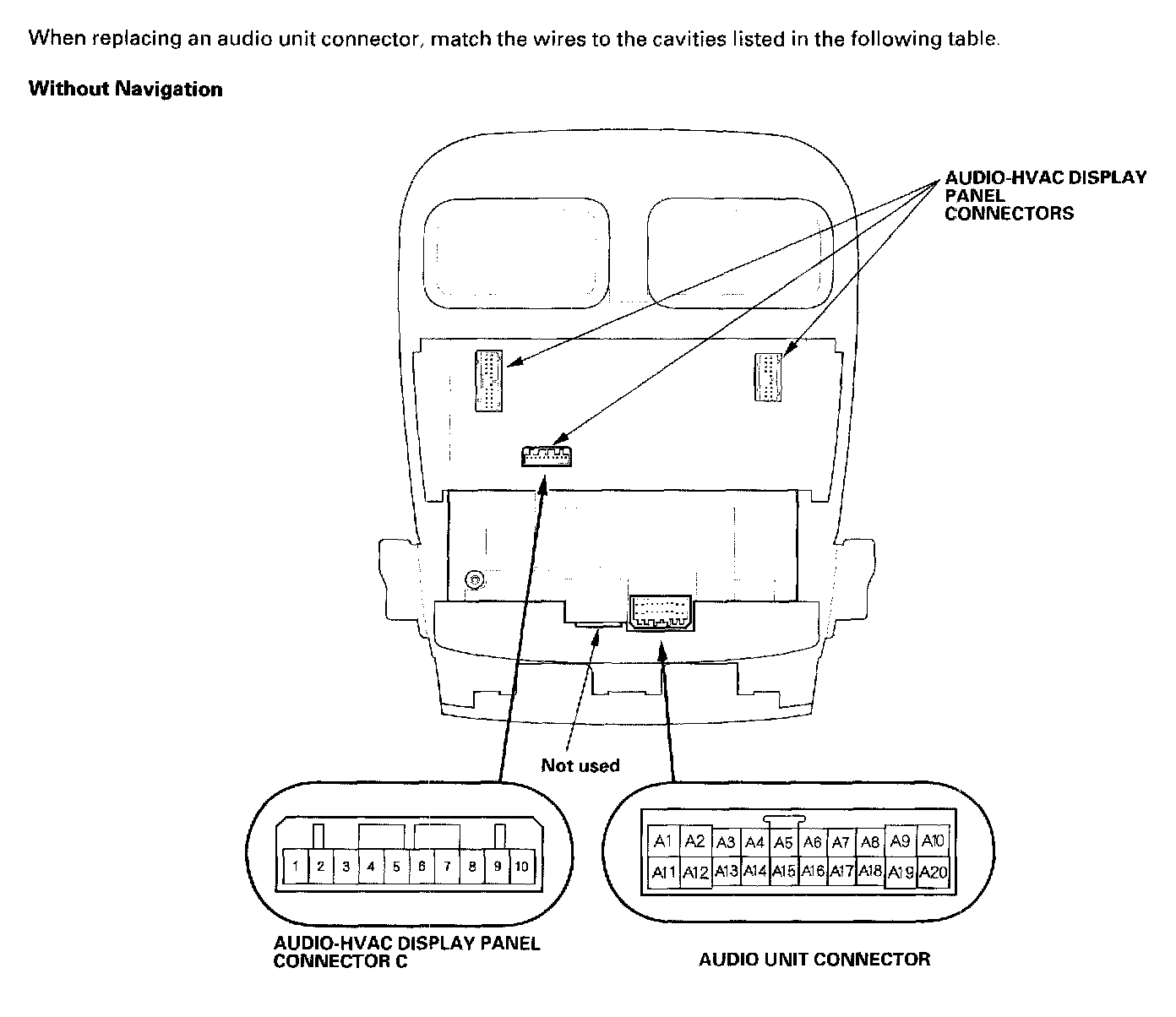

Audio Unit Connector Replacement - Without Navigation Part 1:



Audio Unit Connector Replacement - Without Navigation Part 2:
