Remote Control: Testing and Inspection
Radio Remote Switch Test1. Remove the driver's airbag assembly.

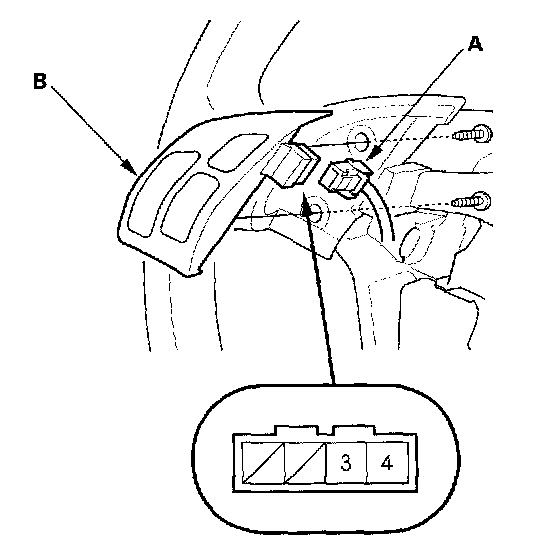

2. Remove the 4P connector (A) from the radio remote switch (B).
3. Remove the two mounting screws and the switch.
4. Measure resistance between the No.3 and No.4 terminals in each switch position according to the table.
5. If the resistance is not as specified, replace the remote switch.
