Stereo Amplifier Replacement

Stereo Amplifier Replacement

1. Remove the center console pocket.

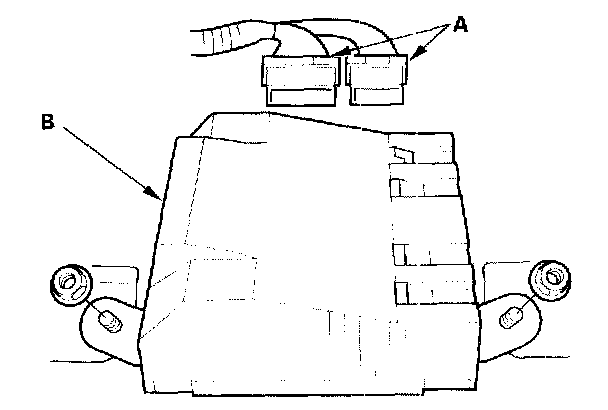

2. Disconnect the connectors (A) from the stereo amplifier (B).
3. Remove the nuts and the stereo amplifier.
