H/U Time Send

H/U Time Send

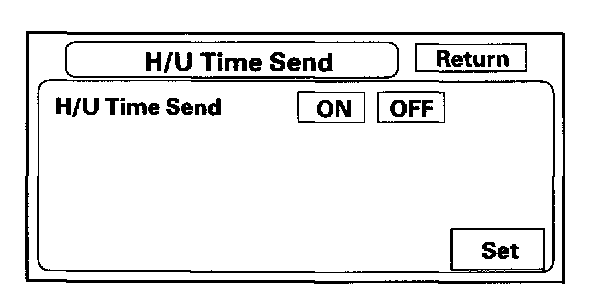

This screen determines whether to automatically send the navigation time to the audio-HVAC subdisplay. The audio-HVAC display panel connector C (10P) passes this information to the audio-HVAC subdisplay. The navigation time can be found in the Setup screen 2 "Adjust Time Zone/Clock" setting.
- "H/U Time Send" should always be set to "ON".

NOTE: Touching "Reset" on the Adjust Time Zone/Clock screen automatically resets this diagnostic function to "ON".
