Forced Starting of Display

Forced Starting of Display

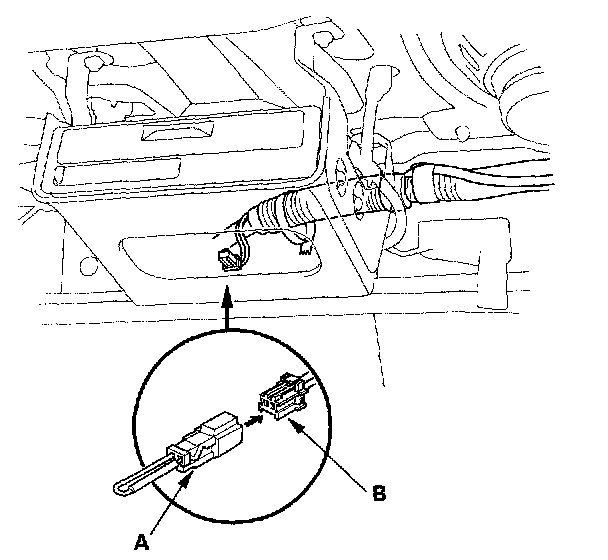

1. Connect the SCS service connector (A) to the navigation service check connector (B) located behind the navigation unit.
2. Check that the diagnosis menu for the picture diagnosis starts up and then changes to the system link menu.

NOTE: If the display fails to the system link screen is not displayed, refer to no picture is displayed.
