Antenna, Radio: Testing and Inspection

Window Antenna Test

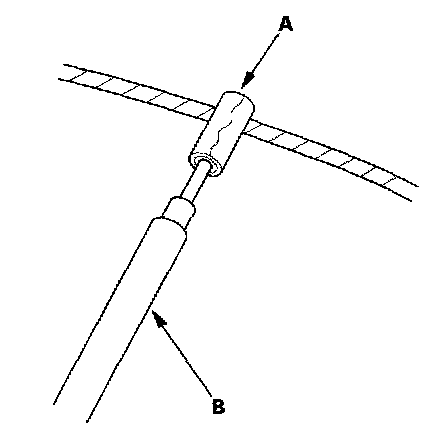

1. Wrap aluminum foil (A) around the tip of the tester probe (B) as shown.

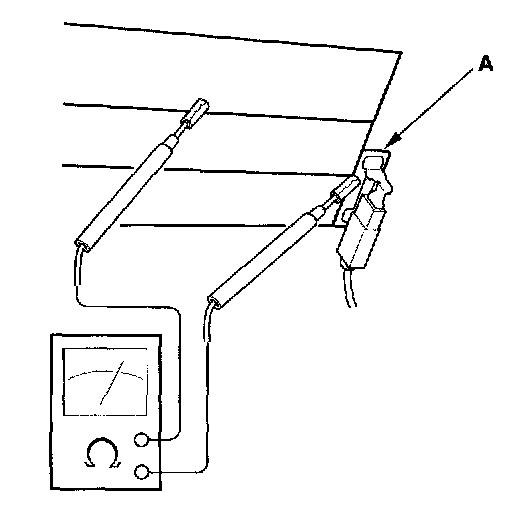

2. Touch one tester probe to the window antenna terminal (A), and move the other tester probe along the antenna wires to check that continuity exists. Repair the window antenna if continuity does not exist.
